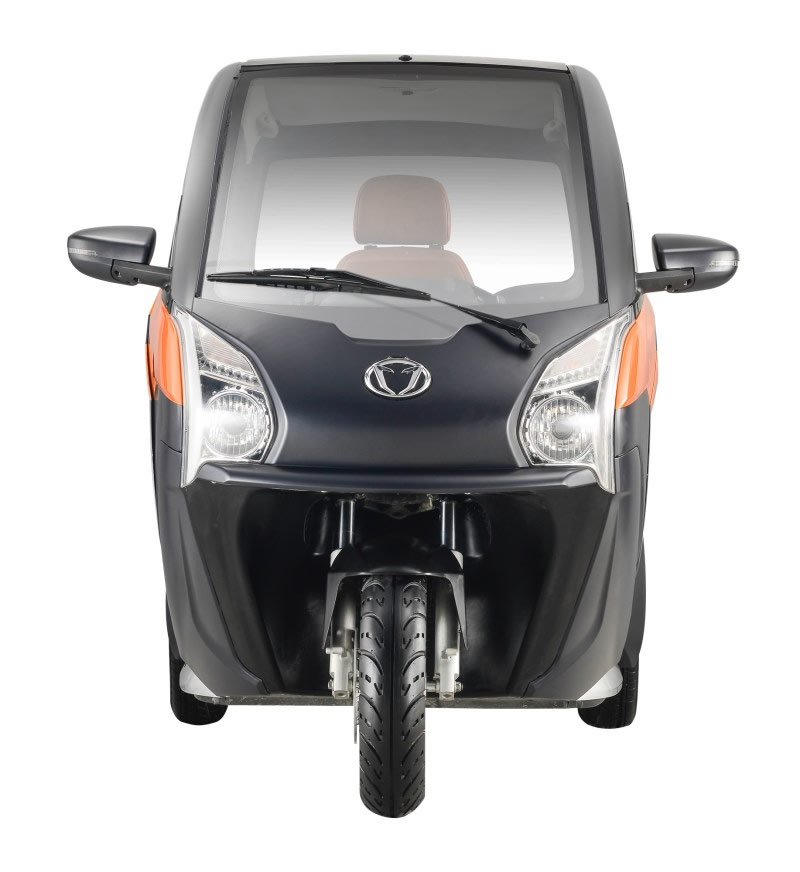

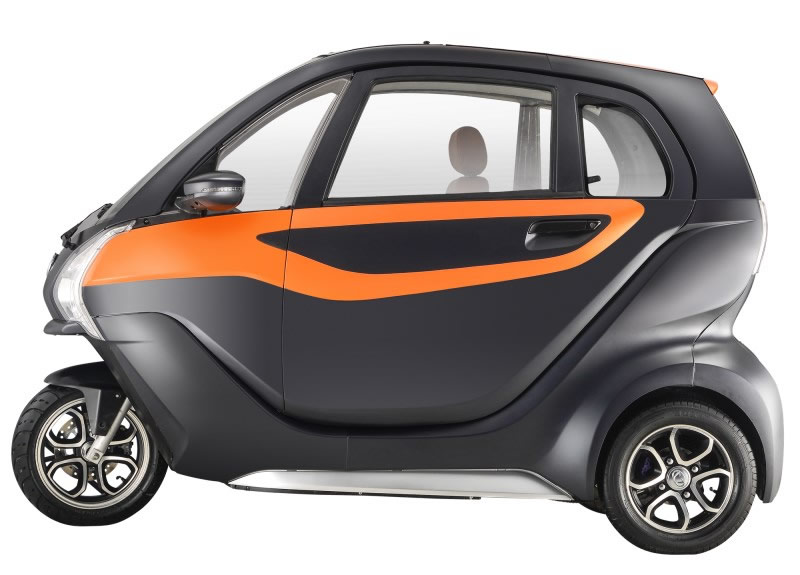

Mobility Scooter Cabin Car
Trike Cabin T1 is implemented special structure design frame and high quality ABS plastic cover, besides fine-looking appearance, it also provide the function of wiper wash, USB charge, radio, GPS and reversing camera.
Dimension(mm) 尺寸 | 2350*1150*1550 |
Body structure 车身结构 | Enclosed electric tricycle 全封闭三轮电动车 |
Wheelbase 轴距 | 1750 |

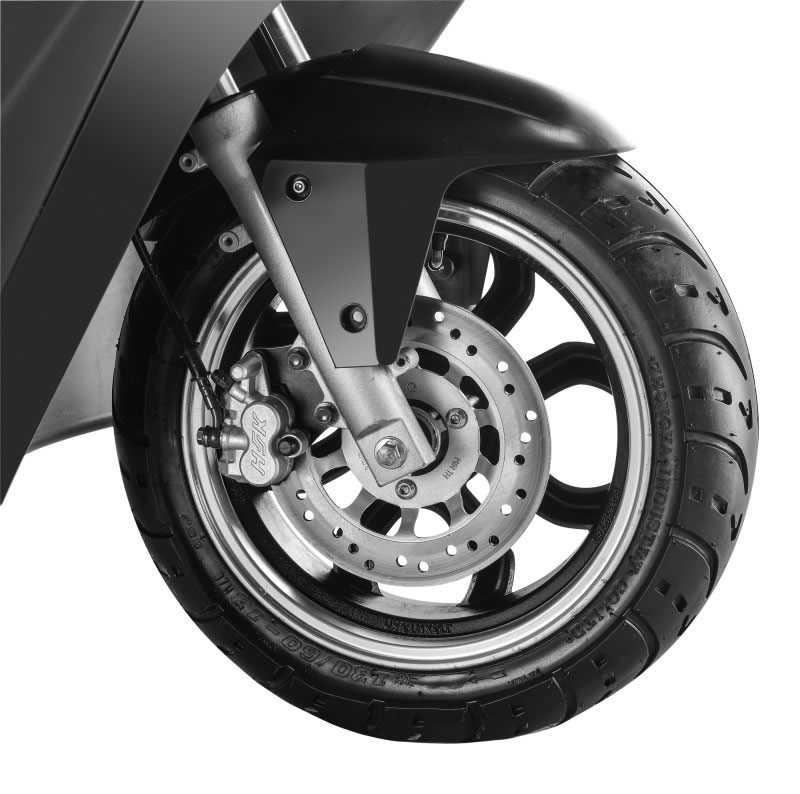

Wheelhub 轮毂 | Front3.5×13 rear 3.5×12 |
Min ground clearance(mm) 离地间隙 | 180 |
Differential ratio 减速比 | 1:10 |
Climbing 爬坡高度 | 30 degree |
Max speed(km/h) 最大速度 | 38km/h |
Safe speed(km/h) 建议速度 | 25 |
Seats 座椅数 | 3 (including the driver) |
Parking way 驻车方式 | Handle (front and rear brake) |
Motor 电机 | 1200W |
Continue mileage 续行距离 | 90km |
Battery power 动力形式 | Pure electric 纯电动 |
Number of tires 轮胎数 | 3 |
Type Specification 轮胎规格 | Front:130/60-13 rearb125/65-R12 |

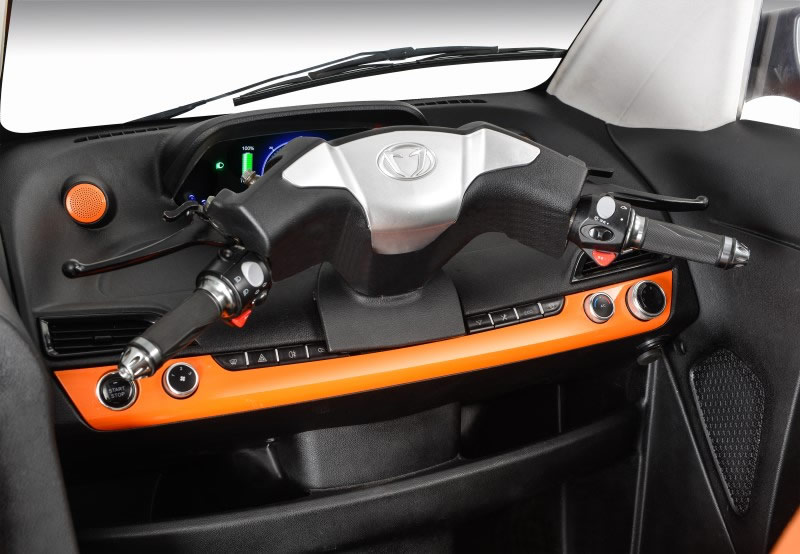

Steering way 操纵方式 | Handlebar |
Luggage capacity 后尾箱容量 | 25L |
Battery 电池容量 | 60V58AH lead acid battery |
