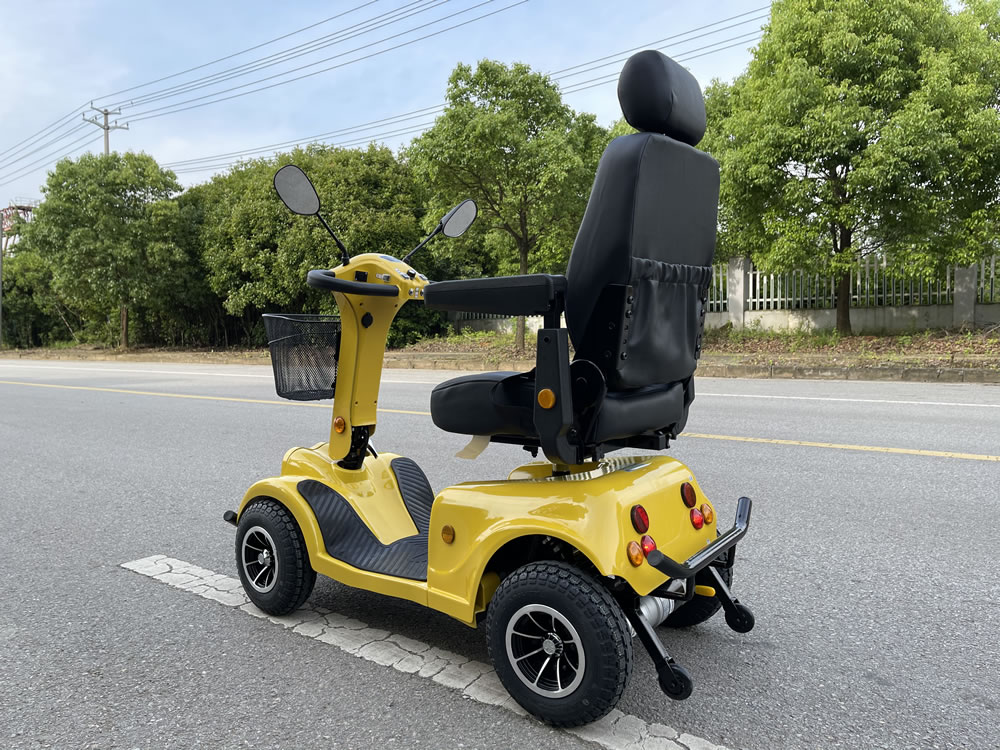

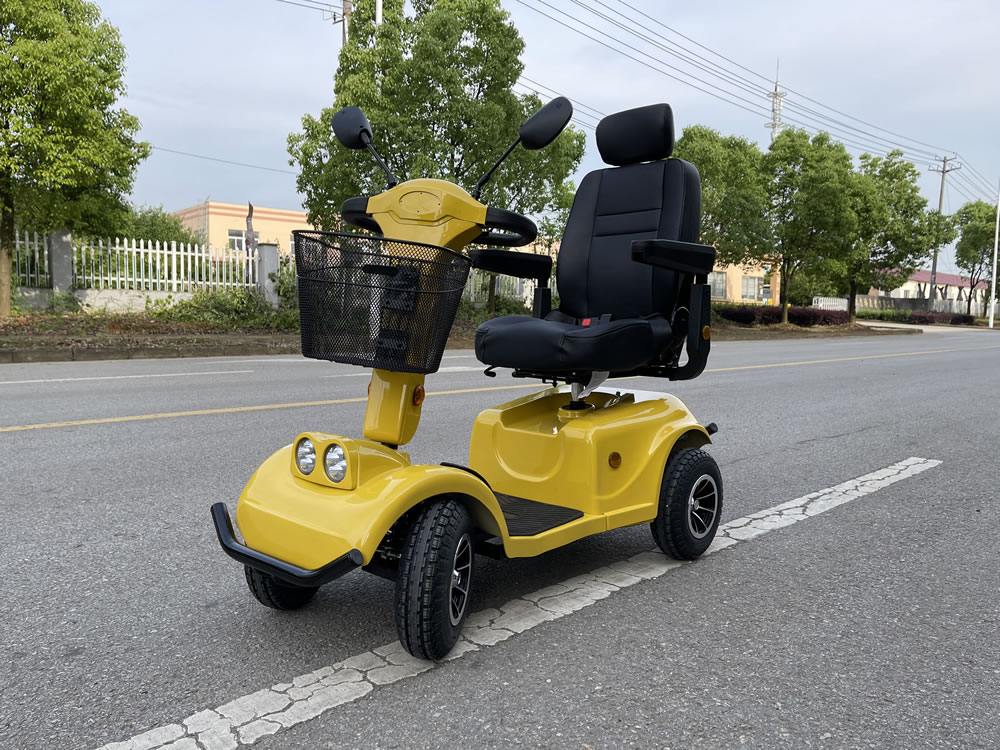

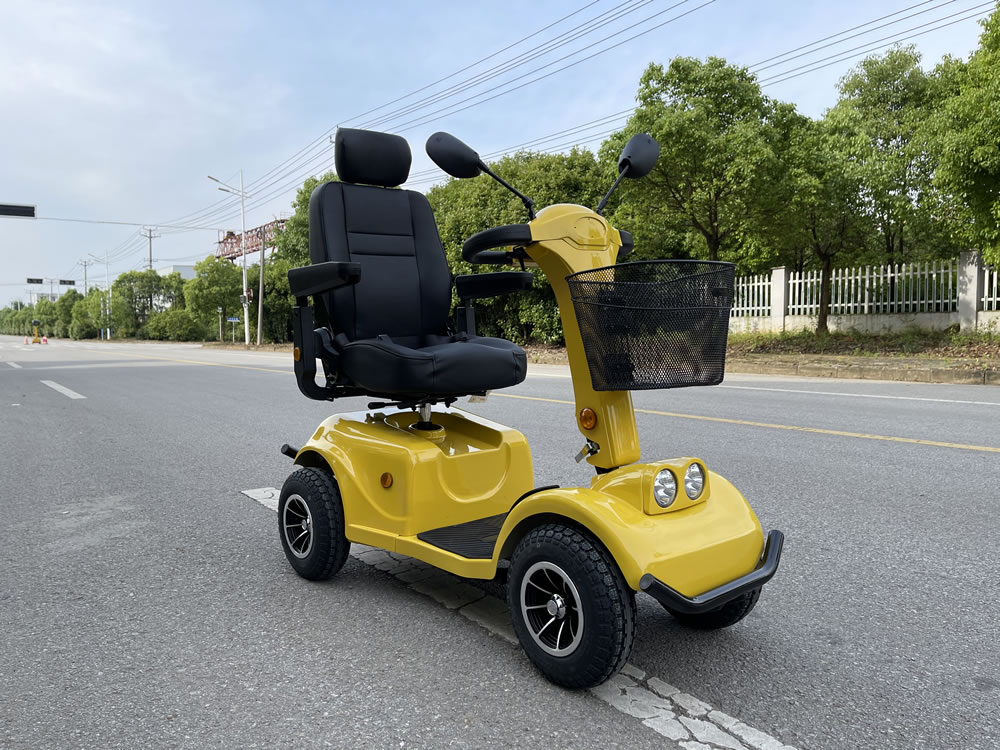

Mobility Scooter/CW500

CW500 is developed as a middle luxurious scooter, it is a cost-effective scooter model, with assembled luxurious and comfortable seat which back rest can be 180 adjusted, and front and rear shock absorbers, it offers a comfortable and stable driving.


Overall dimensions: 1390X650X1080mm
Motor power: 400W
Drive system: 24V Sealed Transaxle
Battery: 12V*2 38AH
Controller: PG 70A
Charger: 5A
Max. speed (km/h): 12 km/h
Max. loading weight: 120kgs
Wheel: 12''
Travel range: up to 40km
Turning radius: 2 m
Max. climbing grade: 12°
Ground clearance: 80mm
Weight w/o battery: 69kgs
Total weight w/bat.: 97kgs
Packing size: Scooter:1440*690*675mm
