CW200-X

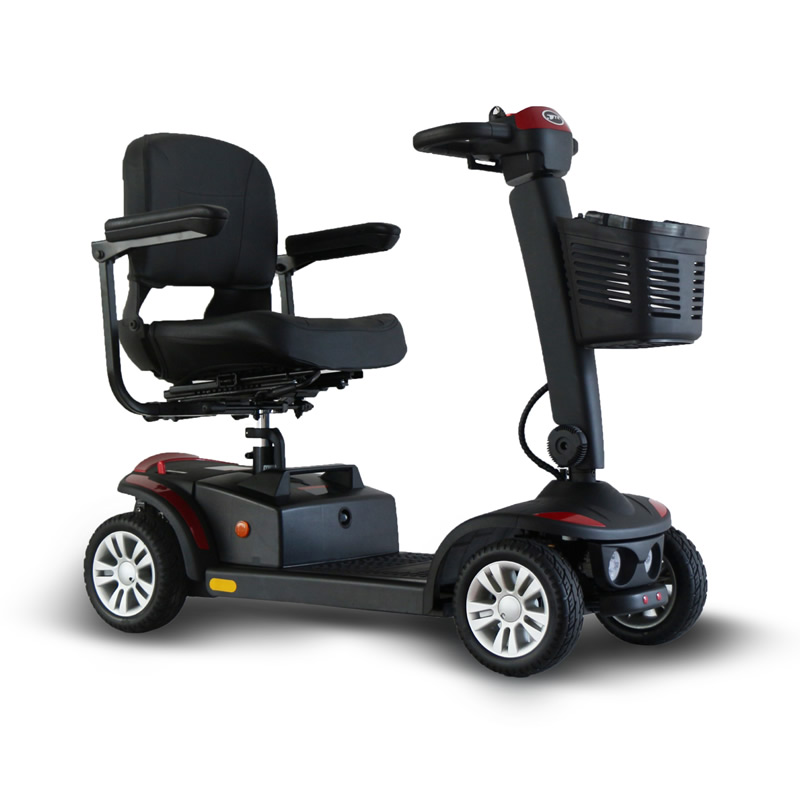

Enclosed Mobility Scooter 4 Wheels

Description

Overall dimensions: 1080*505*900mm
Motor power: 300W
Drive system: 24V Sealed Transaxle
Battery: 12V*2 20AH
Controller: 45A
Charger: 2A
Max. speed (km/h): 6.8 km/h
Max. loading weight: 136kgs

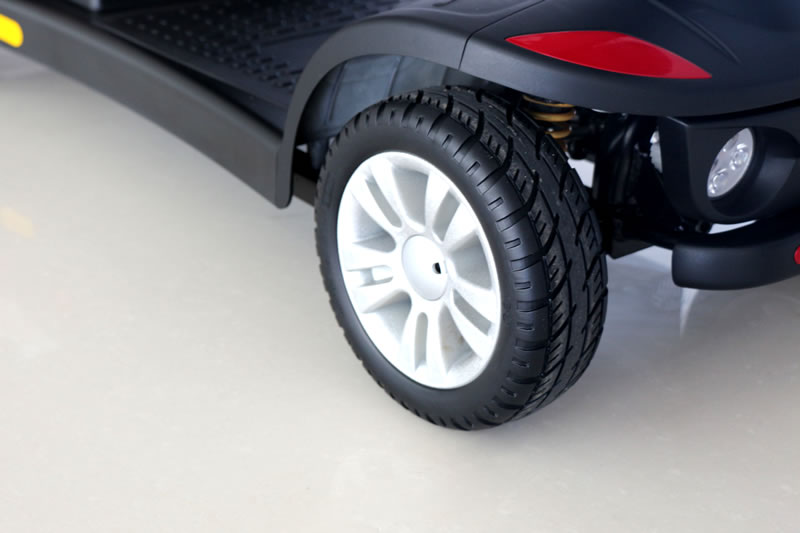

Wheel: Front 9” solid tyre
Rear 9” solid tyre
Travel range: up to 25km
Turning radius: 1.1 m
Max. climbing grade: 12°
Ground clearance: 65mm
Weight w/o battery: 50kgs
Total weight w/bat.: 65kgs
